| ¡Ö DOUBLE GIRDER HOIST DOUBLE SPEED |
| |
 |
| |
| ¡Ö Specification |
| |
| |
Capacity
(KG) |
Product code |
Lifiting
Height
(m) |
Wire rope
Dia.-F/R |
Lifting speed
(m/min)50Hz |
Hoisting Motor |
Traversing speed
(m/min)50Hz |
Traversing Moto |
Grade
(ISo) |
Output
(KW) |
Rating
(%ED) |
Output
(KW) |
Rating
(%ED) |
| 5,000 |
YEW-50-6D |
6 |
12-4/2
|
5.5/1.8
|
6.3/2.1
|
40%/20%
|
18/6
|
0.6/0.2
|
40%/20%
|
M5
|
YEW-50-9D |
9 |
YEW-50-12D |
12 |
| 7,500 |
YEW-75H-6D |
6 |
12-4/1 |
4.2/1.4
|
6.3/2.1
|
40%/20% |
18/6 |
0.75/0.25 |
40%/20% |
M5 |
YEW-75H-9D |
9 |
| 10,000 |
YEW-100AH-6D |
6 |
16-4/1 |
4.2/1.4 |
9/3 |
40%/20% |
18/6
|
0.75/0.25
|
40%/20%
|
M5
|
YEW-100AH-9D |
9
|
CEW-100-9D |
16-4/2 |
4.8/1.6 |
11/3.7 |
CEW-100-12D |
12 |
| 15,000 |
CEW-150H-8D |
8 |
18-4/1 |
3.3/1.1
|
11/3.7
|
40%/20% |
16/5.3 |
1.5/0.5 |
40%/20% |
M5 |
CEW-150H-12D |
12 |
CEW-150-12D |
18-4/2 |
5.0/1.7 |
15/5 |
| 20,000 |
CEW-200H-8D |
8 |
20-4/1 |
3.0/1.0 |
13/4.3 |
40%/20% |
16/5.3 |
|
40%/20% |
M5 |
CEW-200H-12D |
12 |
FEW-200-12D |
20-4/2 |
4.8/1.6 |
13/4.3 |
| 30,000 |
FEW-300-12D |
|
18-8/2 |
3.2/1.1
|
19/6.3
|
40%/20% |
16/5.3 |
1.5*2 |
40%/20% |
M5 |
|
| |

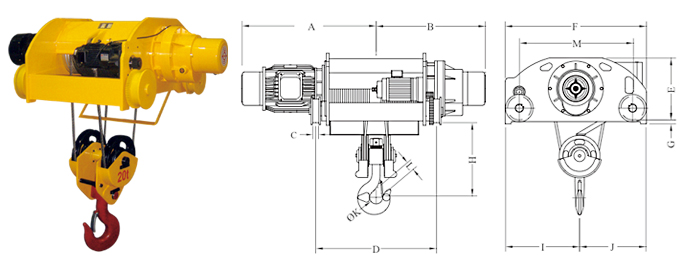

| ¡Ö Dimensions (mm) |
| |
| |
Capacity
(KG) |
Product code |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
¡íK |
L |
M |
| 5,000 |
YEW-50-6D |
780 |
690 |
46
|
735 |
450
|
920
|
28
|
540
|
465
|
400
|
80 |
48 |
700 |
YEW-50-9D |
890 |
800 |
955 |
YEW-50-12D |
990 |
900 |
1155 |
| 7,500 |
YEW-75H-6D |
890 |
800 |
46
|
955 |
450
|
920 |
28 |
640 |
465 |
400 |
85 |
60 |
700 |
YEW-75H-9D |
990 |
900 |
1155 |
| 10,000 |
YEW-100AH-6D |
1100 |
800 |
50 |
950 |
520 |
1200 |
25 |
680
|
665
|
565 |
100
|
73 |
960 |
YEW-100AH-9D |
1200 |
900 |
1150 |
CEW-100-9D |
1160 |
990 |
590 |
1260 |
595 |
980 |
CEW-100-12D |
1285 |
1115 |
1400 |
| 15,000 |
CEW-150H-8D |
1170 |
990 |
60 |
1110 |
650
|
1340 |
30 |
935 |
705 |
635 |
120 |
90 |
1040 |
CEW-150H-12D |
1270 |
1090 |
1300 |
CEW-150-12D |
1430 |
1190 |
690 |
| 20,000 |
CEW-200H-8D |
1170 |
990 |
60 |
1100 |
650 |
1340 |
30 |
1080 |
705 |
635 |
140 |
113 |
1040 |
CEW-200H-12D |
1270 |
1090 |
1300 |
FEW-200-12D |
1520 |
1190 |
750 |
| 30,000 |
FEW-300-12D |
1870 |
1460 |
70
|
1800 |
1135
|
1960 |
---- |
1340 |
1040 |
920 |
|
|
1320 |
|
|
 |
