| ¡Ö LOW HEADROOM HOIST |
| |
 |
| |
| ¡Ö Specification |
| |
| |
Capacity
(KG) |
Product code |
Lifiting
Height
(m) |
Wire rope
Dia.-F/R |
Lifting speed
(m/min)50Hz |
Hoisting Motor |
raversing speed
(m/min)
50HZ |
Traversing Moto |
Grade
(ISO) |
Output
(KW) |
Rating
(%ED) |
Output
(KW) |
Rating
(%ED) |
¡@SINGLE SPEED |
| 2,000 |
YEL-20-6 |
6 |
8-4/2
|
5.0
|
2.2 |
60% |
15 |
0.25 *2 |
40% |
M6 |
YEL-20-10 |
10 |
| 3,000 |
YEL-30-6 |
6 |
10-4/2 |
5.5 |
3.7 |
60% |
15 |
0.25 *2 |
40% |
M6 |
YEL-30-12 |
12 |
| 5,000 |
YEL-50-6 |
6 |
12-4/2 |
5.5 |
6.3 |
60% |
15 |
0.4 *2 |
40% |
M6 |
YEL-50-12 |
12 |
¡@DOUBLE SPEED |
| 2,000 |
YEL-20-6D |
6 |
8-4/2
|
5.0/1.7 |
2.2/0.7 |
40%/20% |
15/5 |
0.25/0.08 *2 |
40%/20% |
M5 |
YEL-20-10D |
10 |
| 3,000 |
YEL-30-6D |
6 |
10-4/2 |
5.5/1.8 |
3.7/1.2 |
40%/20% |
15/5 |
0.25/0.08 *2 |
40%/20% |
M5 |
YEL-30-12D |
12 |
| 5,000 |
YEL-50-6D |
6 |
12-4/2 |
5.5/1.8 |
6.3/2.2 |
40%/20% |
15/5 |
0.4/0.14 *2 |
40%/20% |
M5 |
YEL-50-12D |
12 |
|
| |

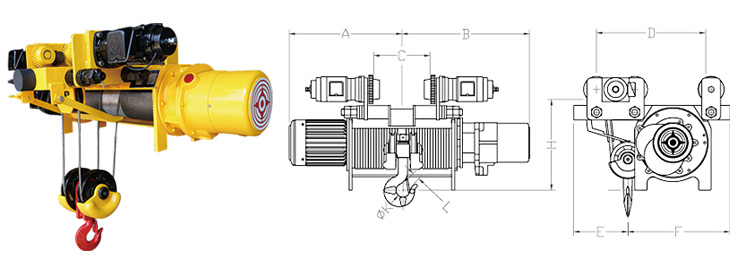

| ¡Ö Dimensions (mm) |
| |
| |
Capacity
(KG) |
Product code |
A |
B |
C |
D |
E |
F |
H |
¡íK |
L |
¡@SINGLE SPEED |
| 2,000 |
YEL-20-6 |
565 |
610 |
75~150 |
500 |
235 |
490 |
500 |
46 |
40 |
YEL-20-10 |
715 |
760 |
| 3,000 |
YEL-30-6 |
590 |
670 |
100~175 |
600 |
285 |
540 |
600 |
60 |
50 |
YEL-30-12 |
700 |
780 |
| 5,000 |
YEL-50-6 |
660 |
690 |
150~250 |
650 |
340 |
540 |
700 |
75 |
62 |
YEL-50-12 |
870 |
900 |
¡@DOUBLE SPEED |
| 2,000 |
YEL-20-6D |
665 |
610 |
75~150 |
500 |
235 |
490 |
500 |
46 |
40 |
YEL-20-10D |
815 |
760 |
| 3,000 |
YEL-30-6D |
710 |
670 |
100~175 |
600 |
285 |
540 |
600 |
60 |
50 |
YEL-30-12D |
820 |
780 |
| 5,000 |
YEL-50-6D |
780 |
690 |
150~250 |
650 |
340 |
540 |
700 |
75 |
62 |
YEL-50-12D |
990 |
900 |
|
|
 |
