| ¡Ö FIXED HOIST MONO-ROPE |
| |
 |
| |
| ¡Ö Specification |
| |
| |
Capacity
(KG) |
Product code |
Lifiting
Height
(m) |
Wire rope
Dia.-F/R |
Lifting speed
(m/min) |
Hoisting Motor |
Grade
(ISO) |
| 50Hz |
60Hz |
Output
(KW) |
Rating
(%ED) |
| 1,000 |
YH-10-6 |
6 |
8-2/1
|
6.5
|
8.0 |
1.5 |
60% |
M6
|
YH-10-9 |
9 |
YH-10-12 |
12 |
YH-10-15 |
15 |
| 1,500 |
YH-15-8 |
8 |
10-2/1 |
6.5 |
8.0 |
2.2 |
60% |
M6 |
YH-15-12 |
12 |
| 2,000 |
YH-20-6 |
6 |
10-2/1 |
5.0 |
6.0 |
2.2 |
60% |
M6 |
YH-20-8 |
8 |
YH-20-12 |
12 |
AH-20A-12 |
8.3 |
10 |
3.7 |
AH-20A-18 |
18 |
| 3,000 |
AH-30-6 |
6 |
12-2/1 |
5.5 |
6.6 |
3.7 |
60% |
M6 |
AH-30-9 |
9 |
AH-30-12 |
12 |
AH-30-15 |
15 |
YH-30A-6 |
6 |
8.3 |
10 |
6.3 |
YH-30A-9 |
9 |
YH-30A-12 |
12 |
YH-30A-15 |
15 |
YH-30A-20 |
20 |
| 5,000 |
YH-50S-6 |
6 |
16-2/1
|
5.5 |
6.6 |
6.3 |
60% |
M6 |
YH-50S-9 |
9 |
YH-50S-12 |
12 |
14-2/1 |
YH-50AS-9 |
9 |
16-2/1 |
8.3 |
10 |
9.0 |
YH-50AS-12 |
12 |
14-2/1 |
|
| |
| |

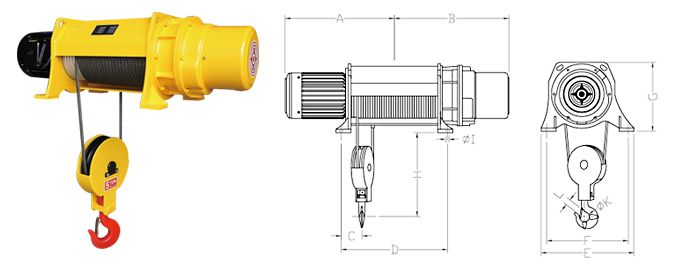

| ¡Ö Dimensions (mm) |
| |
| |
Capacity
(KG) |
Product code |
A |
B |
C |
D |
E |
F |
G |
H |
¡íI |
¡íK |
L |
| 1,000 |
YH-10-6 |
410 |
450 |
110 |
352 |
400 |
340 |
300 |
385 |
19 |
48 |
38 |
YH-10-9 |
470 |
510 |
475 |
YH-10-12 |
|
610 |
220 |
675 |
YH-10-15 |
570 |
110 |
| 1,500 |
YH-15-8 |
470 |
510 |
110 |
475 |
400 |
340 |
300 |
385 |
19 |
48 |
38 |
YH-15-12 |
570 |
610 |
675 |
| 2,000 |
YH-20-6 |
470 |
510 |
180
|
475 |
400
|
340 |
300 |
385 |
19 |
48 |
38 |
YH-20-8 |
110 |
YH-20-12 |
570 |
610 |
675 |
AH-20A-12 |
510 |
590 |
150 |
480 |
560 |
490 |
420 |
510 |
AH-20A-18 |
590 |
670 |
640 |
| 3,000 |
AH-30-6 |
510 |
590 |
220 |
480 |
560 |
490 |
420 |
510 |
19 |
60 |
50 |
AH-30-9 |
150 |
AH-30-12 |
590 |
670 |
220 |
640 |
AH-30-15 |
150 |
YH-30A-6 |
580 |
610 |
220 |
480 |
YH-30A-9 |
150 |
480 |
YH-30A-12 |
660 |
690 |
220 |
640 |
YH-30A-15 |
150 |
YH-30A-20 |
770 |
800 |
860 |
| 5,000 |
YH-50S-6 |
580 |
610 |
160 |
480 |
560 |
490 |
420 |
640 |
19 |
75 |
62 |
YH-50S-9 |
660 |
690 |
180 |
640 |
YH-50S-12 |
160 |
YH-50AS-9 |
180 |
YH-50AS-12 |
160 |
|
|
 |
