¡Ö FALL PREVENTION FOR GOODSHOIST SAFETY DEVICES

  Designed and Developed for Extreme Applications




Fall Prevention Devices provide an added measure of stability and safety that cannot be assured with less substantial structural components.

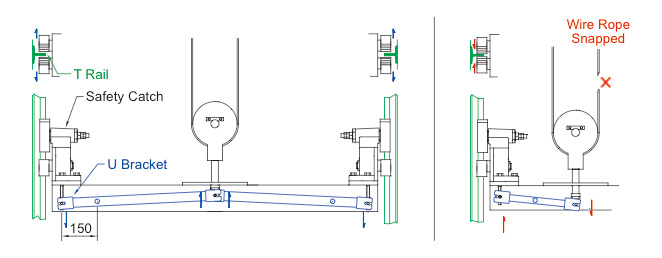

Stopping force is automatically exerted equally on both sides of guide rail and full swivel of rail-grips provide a full and uniform contact on all rail-faces in the unforseen case of wire rope snap.

The safety device is electroplated for antirust, and comes with a Guide Shoe and optional lubricant container.
Steel plated body is lightweight, easy to set up, and holds up to 4,000kgs per unit.

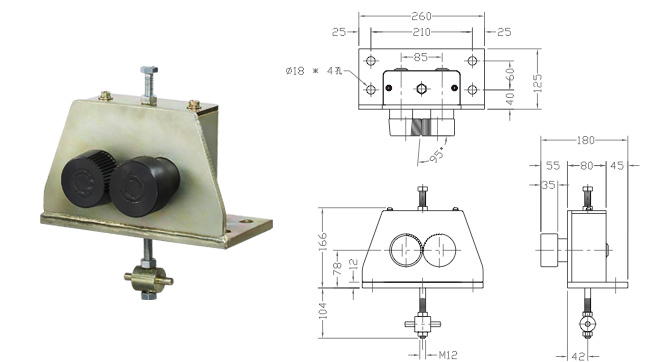

  SAFETY CATCH (FOR UNP)

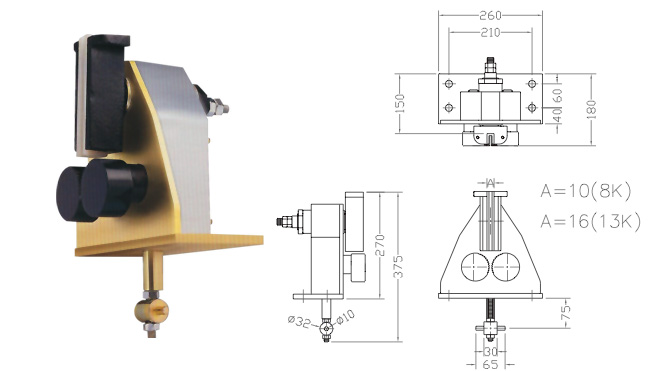

  SAFETY CATCH (FOR RAIL 8, 13K)
