| ¡Ö MONORAIL HOIST DOUBLE SPEED |
| |
 |
| ¡Ö Specification |
| |
| |
Capacity
(KG) |
Product code |
Lifiting
Height
(m) |
Wire rope
Dia.-F/R |
Lifting speed
(m/min) 50Hz |
Hoisting Motor |
Traversing speed
(m/min) 50Hz |
Traversing Moto |
Grade
(ISO) |
Output
(KW) |
Rating
(%ED) |
Output
(KW) |
Rating
(%ED) |
| 1,000 |
YE-10-9D |
9 |
8-2/1
|
6.5/2.1 |
1.5/0.5 |
40%/20%
|
15/5
|
0.25/0.08
|
40%/20%
|
M5
|
YE-10-12D |
12 |
6.5/1.7 |
YE-10-15D |
15 |
| 2,000 |
YE-20-6D |
6 |
10-2/1 |
5/1.7 |
2.2/1.2 |
40%/20% |
15/5 |
0.25/0.08 |
40%/20% |
M5 |
YE-20-8D |
8 |
YE-20-12D |
12 |
YE-20A-12D |
8.3/2.8 |
3.7/1.2
|
0.4/0.13 |
YE-20A-18D |
18 |
| 3,000 |
AE-30-6D |
6 |
12-2/1 |
5.5/1.8 |
3.7/1.2 |
40%/20% |
15/5 |
0.4/0.13 |
40%/20% |
M5 |
AE-30-9D |
9 |
AE-30-12D |
12 |
AE-30-15D |
15 |
YE-30A-9D |
9 |
8.3/2.8 |
6.3/2.1 |
YE-30A-15D |
15 |
|
| |

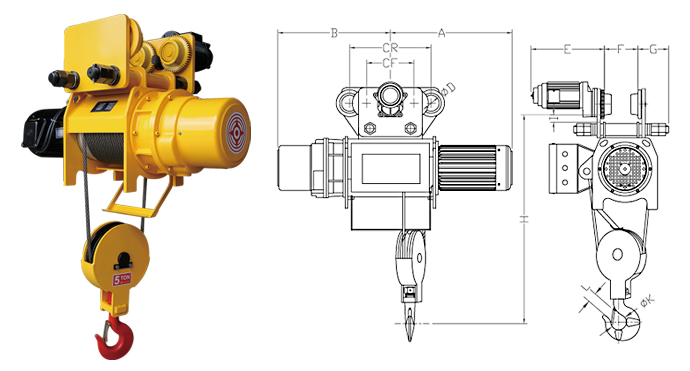

| ¡Ö Dimensions (mm) |
| |
| |
Capacity
(KG) |
Product code |
A |
B |
CR |
CF |
OD |
E |
F |
G |
H |
I |
¡íK |
L |
| 1,000 |
YE-10-6D |
510 |
450 |
180 |
140 |
78 |
365 |
75~150 |
145 |
795 |
40 |
48 |
38 |
YE-10-9D |
570 |
510 |
300
|
185 |
155 |
YE-10-12D |
670 |
610 |
480 |
YE-10-15D |
| 2,000 |
YE-20-6D |
570 |
510 |
300
|
185 |
106 |
415 |
75~150
|
155
|
805 |
36 |
48 |
38 |
YE-20-8D |
YE-20-12D |
670 |
610 |
480 |
YE-20A-12D |
630 |
590 |
300 |
125~175 |
175 |
1065 |
32 |
YE-20A-18D |
710 |
670 |
480 |
| 3,000 |
AE-30-6D |
630 |
590 |
300 |
185 |
106 |
415 |
125~175 |
175 |
1085 |
32 |
70 |
42 |
AE-30-9D |
AE-30-12D |
710 |
670 |
480 |
AE-30-15D |
YE-30A-9D |
700 |
610 |
300 |
YE-30A-12D |
780 |
690 |
480 |
| 5,000 |
YEW-50S-12 |
660 |
690 |
46 |
735 |
450 |
865 |
28 |
730 |
465 |
400 |
80 |
48 |
|
|
 |
