| ¡Ö FIXED HOIST DOUBLE-ROPE |
| |
 |
| |
| ¡Ö Specification |
| |
| |
Capacity
(KG) |
Product code |
Lifiting
Height
(m) |
Wire rope
Dia.-F/R |
Lifting speed
(m/min) |
Hoisting Motor |
Grade
(ISO) |
| 50Hz |
60Hz |
Output
(KW) |
Rating
(%ED) |
| 1,000 |
YHW-10-6 |
6 |
8-4/2
|
6.5
|
8.0 |
1.5 |
60% |
M6
|
| 1,500 |
YHW-15-6 |
6 |
8-4/2 |
6.5 |
8.0 |
1.5 |
60% |
M6 |
YHW-15-10 |
10 |
| 2,000 |
YHW-20-6 |
6 |
8-4/2 |
5.0 |
6.0 |
2.2 |
60% |
M6 |
YHW-20-10 |
10 |
AHW-20A-8 |
8 |
10-4/2 |
8.3 |
10 |
3.7 |
AHW-20A-12 |
12 |
AHW-20A-15 |
15 |
AHW-20A-19 |
19 |
| 3,000 |
AHW-30-8 |
8 |
10-4/2 |
5.5 |
6.6 |
3.7 |
60% |
M6 |
AHW-30-12 |
12 |
AHW-30-15 |
15 |
YHW-30A-8 |
8 |
8.3
|
10
|
6.3
|
YHW-30A-12 |
12 |
YHW-30A-15 |
15 |
YHW-30A-19 |
19 |
| 5,000 |
YHW-50-6 |
6 |
12-4/2
|
5.5
|
6.6 |
6.3 |
60% |
M6 |
YHW-50-9 |
9 |
YHW-50-12 |
12 |
YHW-50-15 |
15 |
YHW-50A-6 |
6 |
8.3 |
10 |
9.0 |
YHW-50A-9 |
9 |
YHW-50A-12 |
12 |
YHW-50A-15 |
15 |
|
| |

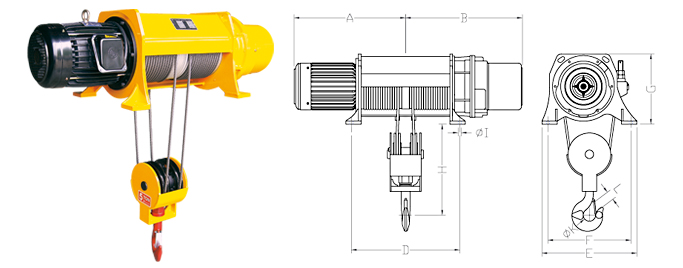

| ¡Ö Dimensions (mm) |
| |
| |
Capacity
(KG) |
Product code |
A |
B |
D |
E |
F |
G |
H |
¡íI |
¡íK |
L |
| 1,000 |
YHW-10-6 |
570 |
610 |
675 |
400 |
340 |
300 |
385 |
19 |
48 |
38 |
| 1,500 |
YHW-15-6 |
570 |
610 |
675 |
400 |
340 |
300 |
385 |
19 |
48 |
38 |
YHW-15-10 |
715 |
760 |
975 |
| 2,000 |
YHW-20-6 |
570 |
610 |
675 |
400
|
340 |
300 |
385 |
19 |
48 |
38 |
YHW-20-10 |
715 |
760 |
975 |
AHW-20A-8 |
590 |
670 |
640 |
560 |
490 |
420 |
510 |
AHW-20A-12 |
700 |
780 |
860 |
AHW-20A-15 |
800 |
880 |
1060 |
AHW-20A-19 |
950 |
930 |
1360 |
| 3,000 |
AHW-30-8 |
590 |
670 |
640 |
560 |
490 |
420 |
510 |
19 |
60 |
50 |
AHW-30-12 |
700 |
780 |
860 |
AHW-30-15 |
800 |
880 |
1060 |
YHW-30A-8 |
660 |
690 |
640 |
YHW-30A-12 |
770 |
800 |
860 |
YHW-30A-15 |
870 |
900 |
1060 |
YHW-30A-19 |
1020 |
1050 |
1360 |
| 5,000 |
YHW-50-6 |
660 |
690 |
640 |
560 |
490 |
420 |
640 |
19 |
75 |
62 |
YHW-50-9 |
770 |
800 |
860 |
YHW-50-12 |
870 |
900 |
1060 |
YHW-50-15 |
1020 |
1050 |
1360 |
YHW-50A-6 |
780 |
690 |
640 |
YHW-50A-9 |
890 |
800 |
860 |
YHW-50A-12 |
990 |
900 |
1060 |
YHW-50A-15 |
1140 |
1050 |
1360 |
|
|
 |
