| ¡Ö MONORAIL HOIST DOUBLE SPEED |
| |
 |
| ¡Ö Specification |
| |
| |
Capacity
(KG) |
Product code |
Lifiting
Height
(m) |
Wire rope
Dia.-F/R |
Lifting speed
(m/min) 50Hz |
Hoisting Motor |
Traversing speed
(m/min) 50Hz |
Traversing Moto |
Grade
(ISO) |
Output
(KW) |
Rating
(%ED) |
Output
(KW) |
Rating
(%ED) |
| 5,000 |
YE-50S-6D |
6 |
16-2/1
|
5.5/1.8 |
6.3/2.1 |
40%/20%
|
15/5
|
0.6/0.2
|
40%/20%
|
M5
|
YE-50S-9D |
9 |
YE-50S-12D |
12 |
14-2/1 |
YE-50-6D |
6 |
12-4/2 |
YE-50-9D |
9 |
YE-50-12D |
12 |
| 7,500 |
YE-75H-6D |
6 |
14-4/1 |
4.2/1.4 |
6.7 /2.2
|
40%/20% |
15/5 |
0.4/0.13 *2 |
40%/20% |
M5 |
YE-75H-9D |
9 |
| 10,000 |
YE-100AH-6D |
6 |
16-4/1 |
4.2/1.4 |
9/3 |
40%/20% |
15/5 |
0.6/0.2 *2 |
40%/20% |
M5 |
YE-100AH-9D |
9 |
CE-100-9D |
16-4/2 |
4.8/1.6 |
11/3.7 |
CE-100-12D |
12 |
|
| |

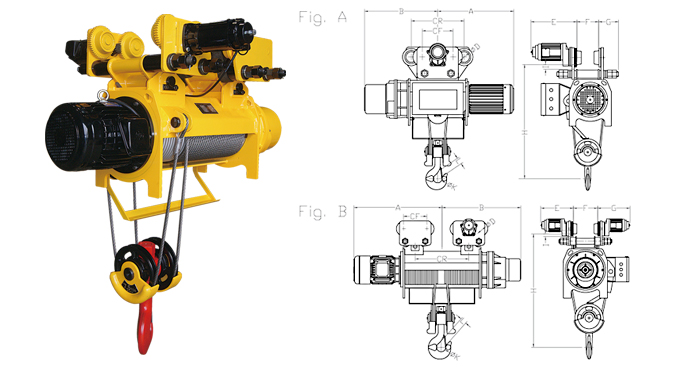

| ¡Ö Dimensions (mm) |
| |
| |
Capacity
(KG) |
Product code |
A |
B |
CR |
CF |
OD |
E |
F |
G |
H |
I |
¡íK |
L |
Fig. |
| 5,000 |
YE-50S-6D |
700 |
610 |
290 |
290 |
135 |
455 |
150~225 |
190 |
1280 |
45 |
75 |
62 |
A |
YE-50S-9D |
780 |
690 |
500
|
YE-50S-12D |
YE-50-6D |
290 |
1080 |
YE-50-9D |
890 |
800 |
500 |
YE-50-12D |
990 |
900 |
| 7,500 |
YE-75H-6D |
890 |
800 |
540 |
300 |
106 |
405 |
250~350 |
405 |
1180 |
42 |
85 |
70 |
B |
YE-75H-9D |
990 |
900 |
740 |
| 10,000 |
YE-100AH-6D |
1100 |
800 |
475 |
290 |
135 |
460 |
300~500 |
460 |
1430 |
45 |
100 |
73 |
B |
YE-100AH-9D |
1200 |
900 |
675 |
CE-100-9D |
1160 |
990 |
680 |
1480 |
CE-100-12D |
1285 |
1115 |
930 |
|
|
 |
